Description
- SWIR and RIR (Red/Infrared) compatible telecentric design
- High transmission in the infrared spectrum
- Optimized for inspection under non-visible light

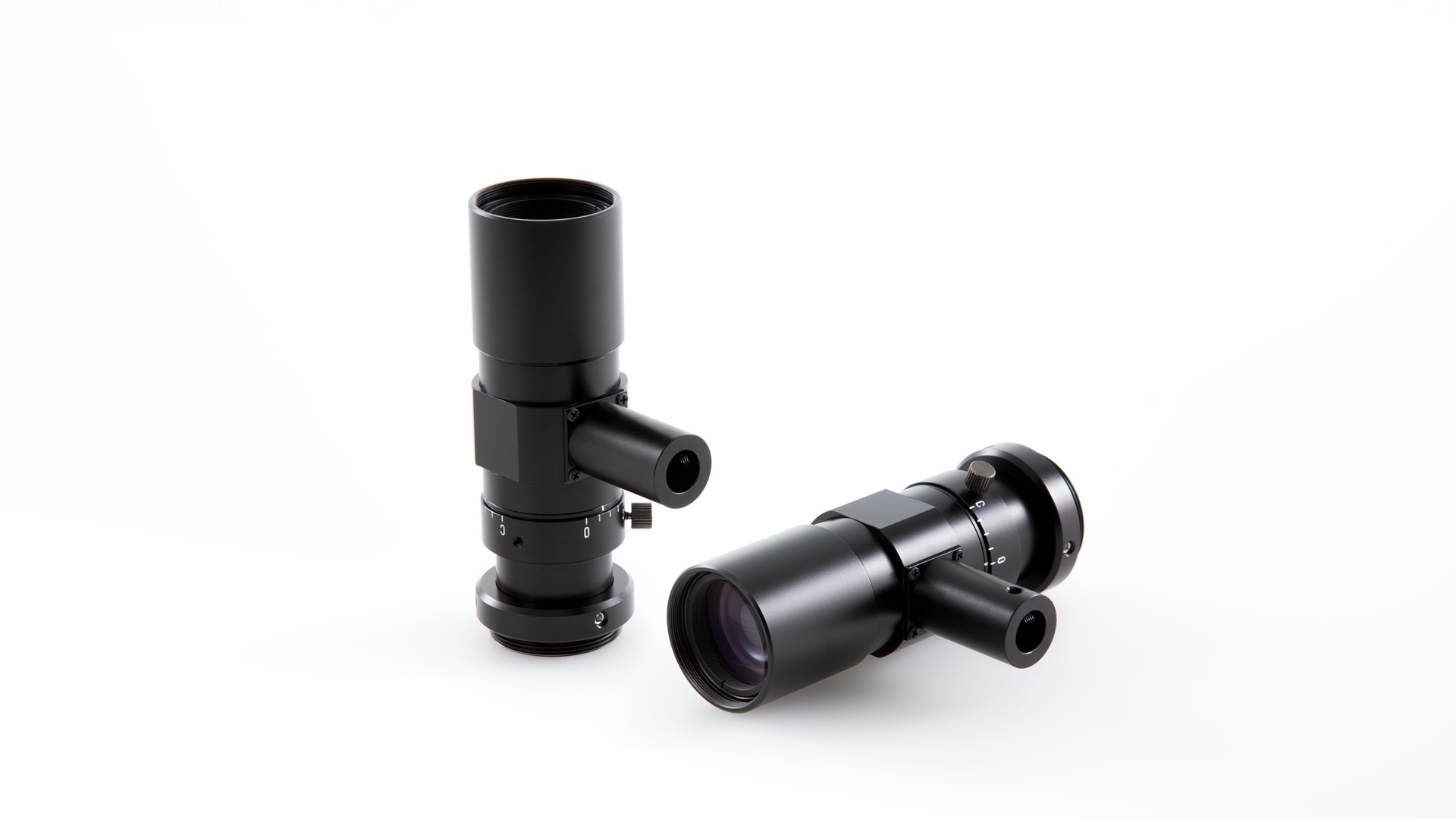

VS-TCM1-65CO/S-RIR
- SWIR and RIR (Red/Infrared) compatible telecentric design
- High transmission in the infrared spectrum
- Optimized for inspection under non-visible light
Additional information
| Aperture | F 6.2 |
|---|---|
| Lens mount | C-mount |
| Model | VS-TCM1-65CO/S-RIR |
| Optmag | 1.0x |
| Sensor size | 1/2" |
| Series | VS-TCM1-65CO/S-RIR |
| Tv distortion | 0.05% |
| Wavelength | Visible |
| Weight | 160 g |
| Flange back | 17.526 mm |
| Dimension | (max.) 36 x L = 96.1 mm |
| Wd | 66.3 mm |
| Na | 0.081 |
