VS-LDA75

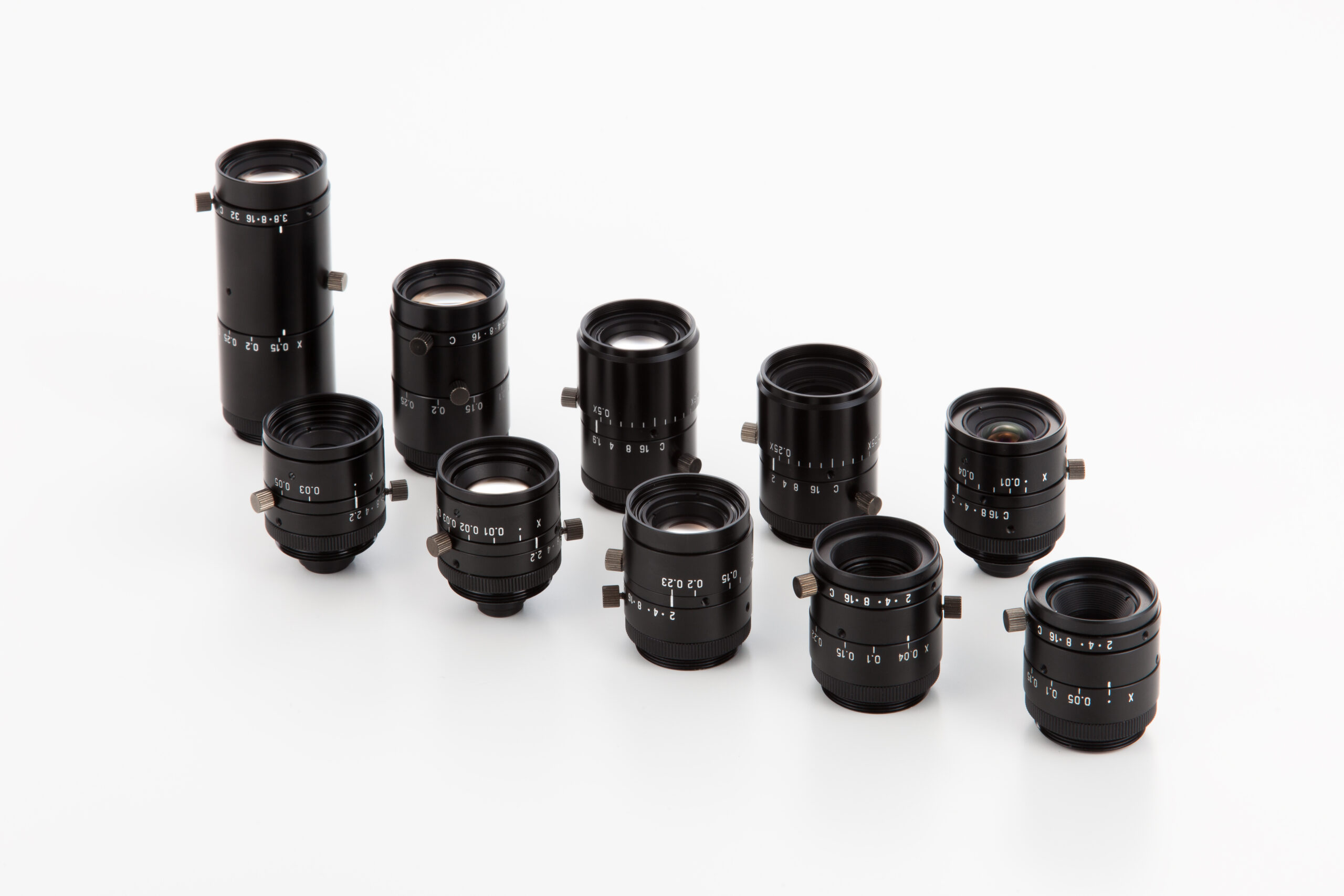

  • 10 models lineup from f4mm to f75mm
  • Wide range of magnification, WD, and depth of field
  • Maximizes the performance of megapixel cameras by cutting the infinity range and reducing distortion to almost 0%
  • Macro design optimal for close-up environments
Category: Tag: Brand:

Description

  • 10 models lineup from f4mm to f75mm
  • Wide range of magnification, WD, and depth of field
  • Maximizes the performance of megapixel cameras by cutting the infinity range and reducing distortion to almost 0%
  • Macro design optimal for close-up environments

Additional information

Aperture

Manual

Filter thread

M 30.5 P=0.5

Focal length (mm)

75 mm

Lens mount

C-mount

Model

VS-LDA75

Sensor size

2/3"

Series

VS-LDA

Tv distortion

0.04%

Wavelength

Visible

Weight

80 g

Max aperture ratio

1: 3.8

Operation

Manual (Lock screw M2)

Flange back

17.526 mm

Dimension

Φ32.5 x L = 41.5 mm
