VS-LDA50

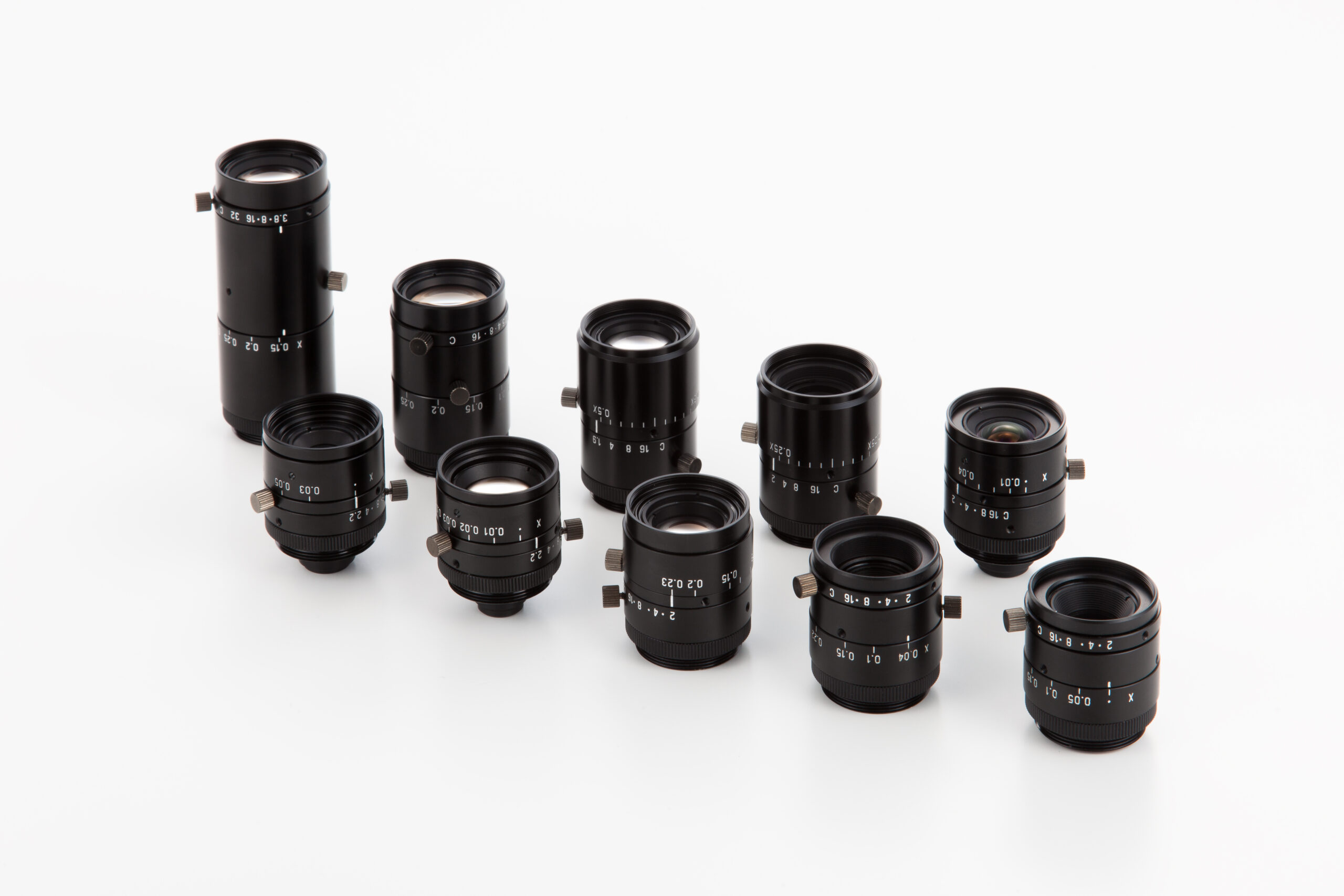

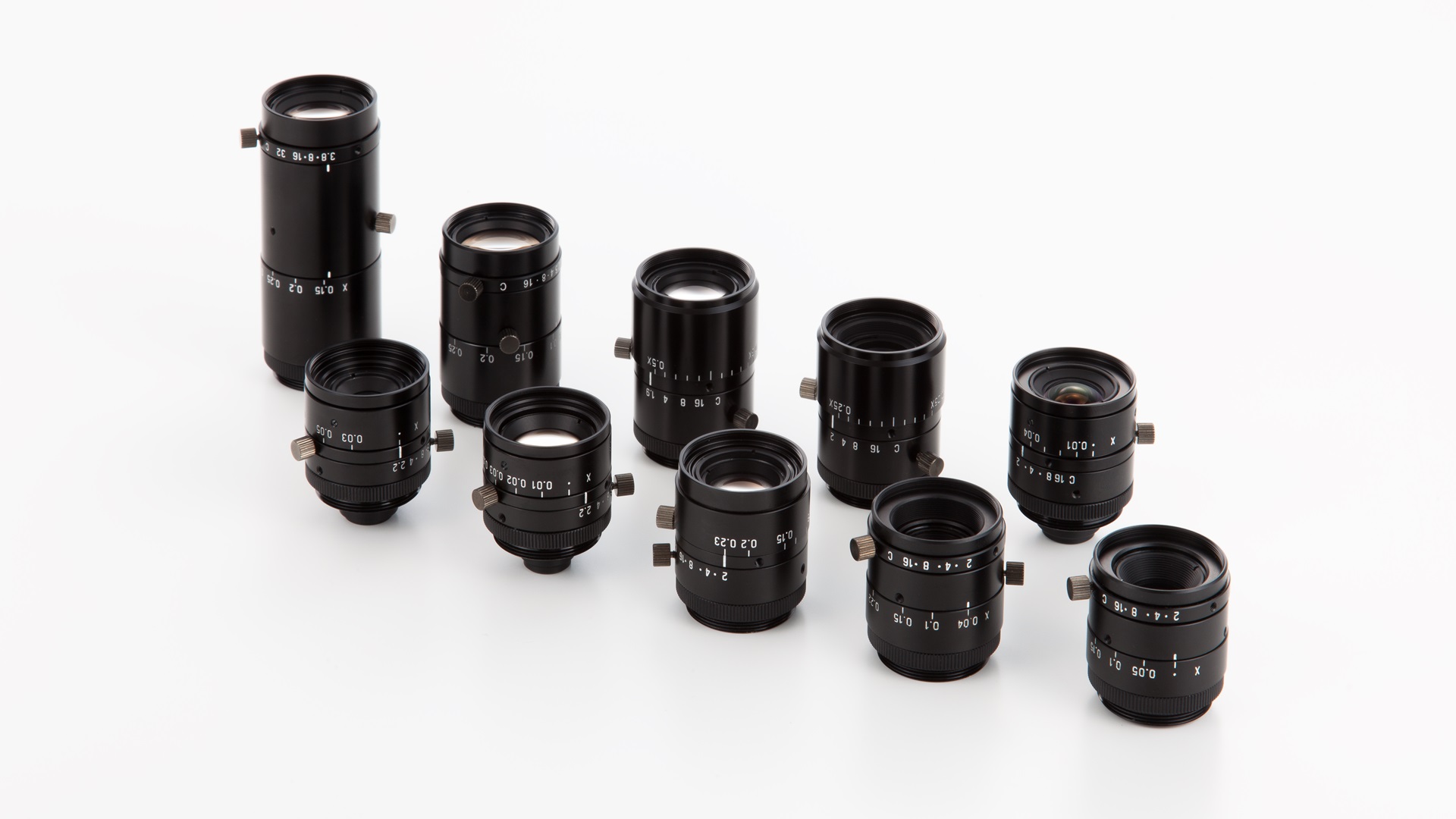

  • 10 models lineup from f4mm to f75mm
  • Wide range of magnification, WD, and depth of field
  • Maximizes the performance of megapixel cameras by cutting the infinity range and reducing distortion to almost 0%
  • Macro design optimal for close-up environments
Category: Tag: Brand:

Description

  • 10 models lineup from f4mm to f75mm
  • Wide range of magnification, WD, and depth of field
  • Maximizes the performance of megapixel cameras by cutting the infinity range and reducing distortion to almost 0%
  • Macro design optimal for close-up environments

Additional information

Aperture

Manual

Filter thread

M 27 P=0.5

Focal length (mm)

50 mm

Lens mount

C-mount

Model

VS-LDA50

Sensor size

2/3"

Series

VS-LDA

Tv distortion

0.05%

Wavelength

Visible

Weight

65 g

Max aperture ratio

1: 2.5

Operation

Manual (Lock screw M2)

Flange back

17.526 mm

Dimension

Φ29.5 x L = 37.5 mm
