VS-LDA25

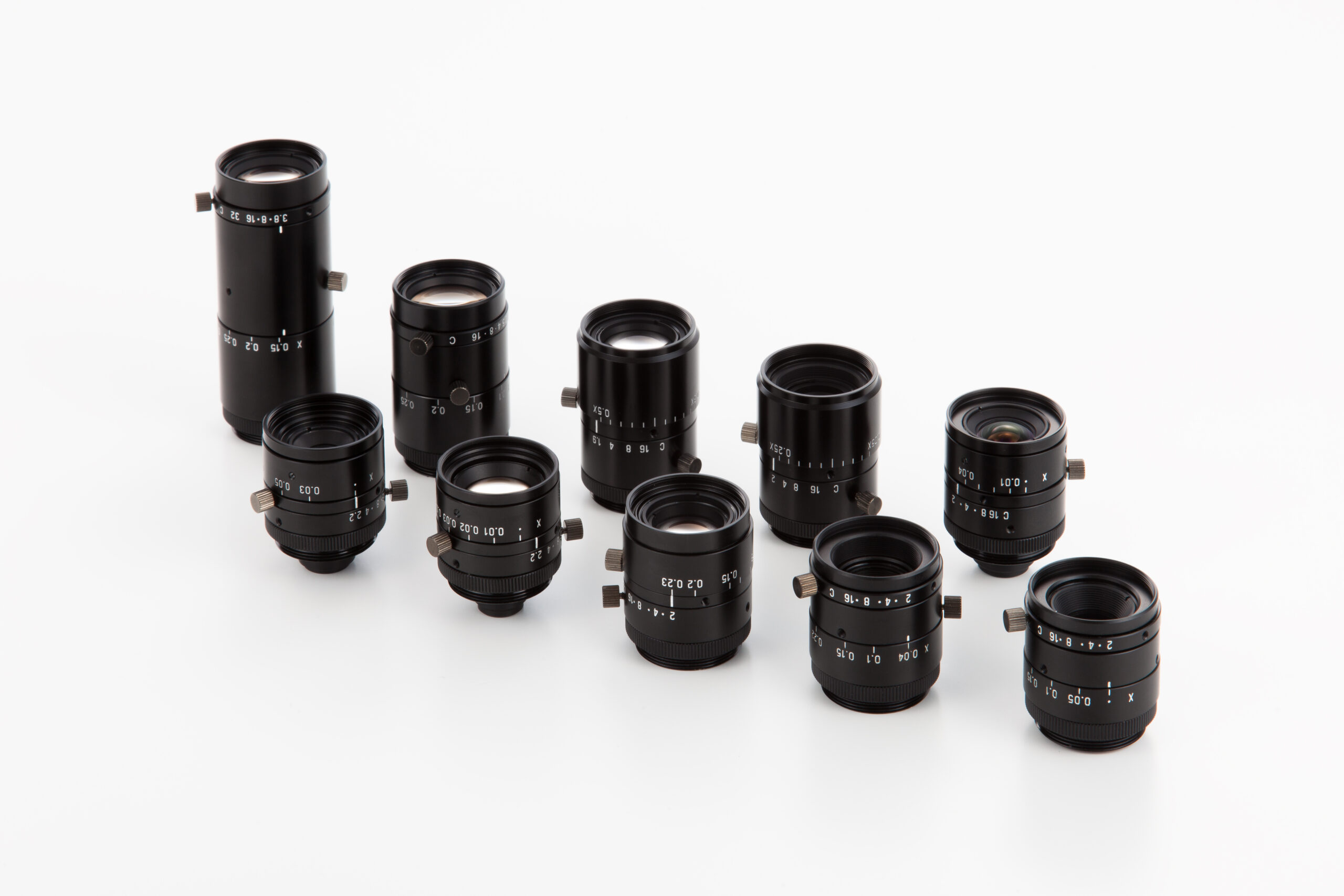

  • 10 models lineup from f4mm to f75mm
  • Wide range of magnification, WD, and depth of field
  • Maximizes the performance of megapixel cameras by cutting the infinity range and reducing distortion to almost 0%
  • Macro design optimal for close-up environments
Category: Tag: Brand:

Description

  • 10 models lineup from f4mm to f75mm
  • Wide range of magnification, WD, and depth of field
  • Maximizes the performance of megapixel cameras by cutting the infinity range and reducing distortion to almost 0%
  • Macro design optimal for close-up environments

Additional information

Aperture

Manual

Filter thread

M 25.5 P=0.5

Focal length (mm)

25 mm

Lens mount

C-mount

Model

VS-LDA25

Sensor size

2/3"

Series

VS-LDA

Tv distortion

-0.15%

Wavelength

Visible

Weight

50 g

Max aperture ratio

1: 2.0

Operation

Manual (Lock screw M2)

Flange back

17.526 mm

Dimension

Φ29.5 x L = 31.0 mm
