Description
- 3.3μm compatible

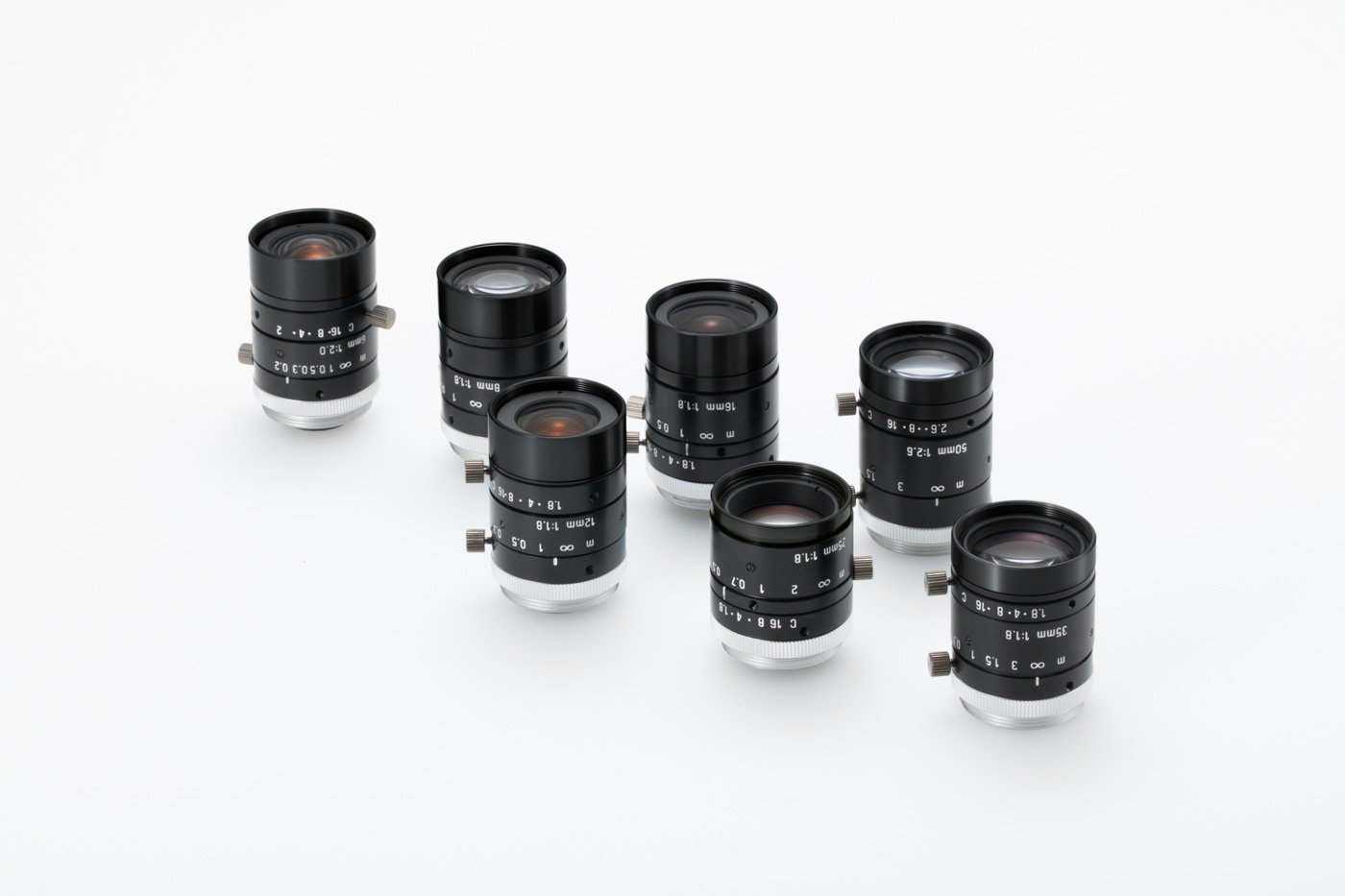

- 7 models lineup from f6 to f50mm
- FNO 1.8, compact size
- Improved vibration resistance compared to conventional models
VS-1218VM
- 3.3μm compatible
- 7 models lineup from f6 to f50mm
- FNO 1.8, compact size
- Improved vibration resistance compared to conventional models
Additional information
| Angle of view | (Diagonal: 40.2°) 32.6° x 25° |
|---|---|
| Aperture | Close ~ F 1.8 |
| Filter thread | M27 P=0.5 |
| Focal length (mm) | 12 mm |
| Lens mount | C-mount |
| Model | VS-1218VM |
| Sensor size | 1/1.8" |
| Series | VS-VM |
| Tv distortion | -0.19% |
| Wavelength | Visible |
| Weight | 60 g |
| Max aperture ratio | 1: 1.8 |
| Mod | 100 mm |
| Operation | Manual (Lock screw M2) |
| Flange back | 17.526 mm |
| Dimension | (max.) Φ29 x L = 37.5 mm |
| Accessory developer | VS Technology |
