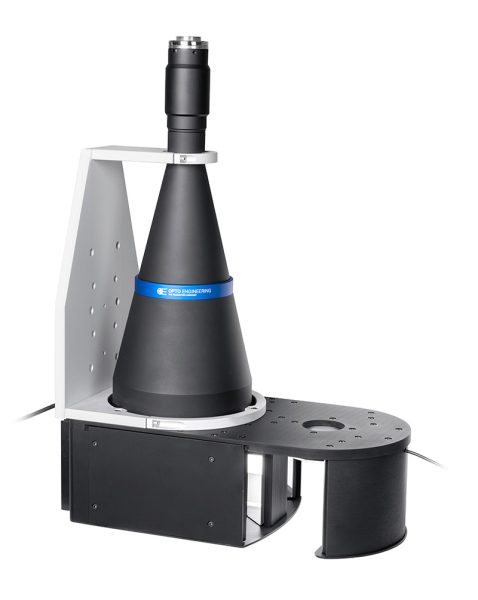

TCCAGE4MHR096-C

Specification	Value
Magnification	0.186 (x)
Sensor size	18.1 x 13.6 (mm x mm)
Min sensor size	4/3″
Maximum	16.0 x 68.0 (mm x mm)
Working f/N	16
Depth of field	23.90 (mm)
Light color, peak wavelength	white, 6300K
Power supply mode	Continuous, strobe constant current driving
Supply voltage	24 (V)
Max continuous current	620 (mA)
Typical pulse voltage	36 (V)
Max pulse current	6 (A)
Peak power consumption	14.9 (W)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Estimated MTBF	20000 (hours)
Cable length	– (m)
Connector	M8
Cables	CB244P1501
Light color, peak wavelength	white, 6300K
Power supply mode	Continuous, strobe constant current driving
Supply voltage	24 (V)
Max continuous current	90 (mA)
Typical pulse voltage	36 (V)
Max pulse current	0.27 (A)
Peak power consumption	2.2 (W)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Estimated MTBF	20000 (hours)
Cable length	1 (m)
Connector	Flying leads
Cables	–
Mount	C
Phase adjustment	Yes
Length	347.0 (mm)
Width	179.0 (mm)
Height	461.9 (mm)
Mass	7001 (g)
Operating temperature	0-40 (°C)
Operating relative humidity	20 – 85, non-condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Exempt

Description

Recommended sensor. Different sensor sizes may generate incomplete images.
Maximum sample diameter in each of the four views and maximum sample height with the recommended sensor.
Working f-number (wf/N): the real f-number of a lens in operating conditions. Lenses with reduced aperture can be supplied on request.
At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
Tolerance ± 2%.
Drop to 50% intensity @ 25°C.
Indicates the availability of an integrated camera phase adjustment feature.

Cable length	1 (m)
Width	179.0 (mm)
Optmag	0.186 (x)
Accessory developer	Opto
Maximum	16.0 x 68.0 (mm x mm)
Sensor size	18.1 x 13.6 (mm x mm)
Zoom ratio	0.186 (x)
Working f/N	16
Depth of field	23.90 (mm)
Phase adjustment	Yes
Mass	7001 (g)
Length	347.0 (mm)
Connector	Flying leads
Supply voltage	24 (V)
Height	461.9 (mm)
Operating temperature	0-40 (°C)
Light color, peak wavelength	white, 6300K
Installation	Indoor use only
Max pulse current	0.27 (A)
Operating relative humidity	20 – 85, non-condensing (%)
Risk group (cei 62471)	Exempt
Typical pulse voltage	36 (V)
Peak power consumption	2.2 (W)
Max duty cycle	10 (%)
Max pulse duration	10 (ms)
Cables	–
Power supply mode	Continuous, strobe constant current driving
Max continuous current	90 (mA)
Estimated mtbf	20000 (hours)
Min sensor size	4/3"
Lens mount	C
Mount	C
