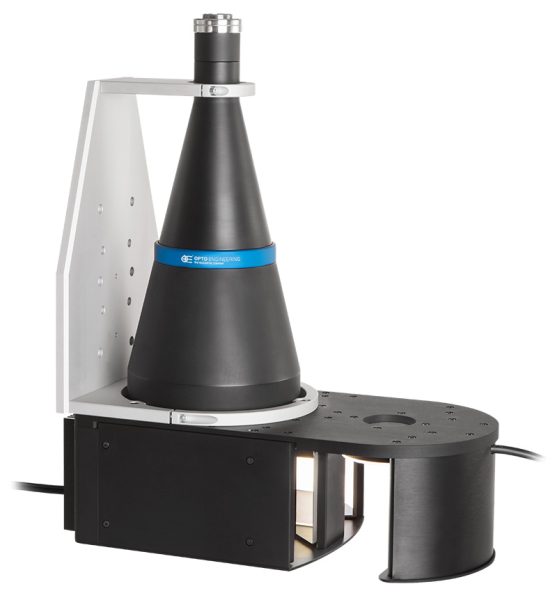

TCCAGE23096HP

Specification	Value
Cable length	– (m)
Connector	M8
Magnification	0.093 (x)
Sensor size	8.5 x 7.1 (mm x mm)
Min sensor size	2/3″
Maximum	16.0 x 68.0 (mm x mm)
Working f/N	8
Depth of field	47.90 (mm)
Light color, peak wavelength	white, 6500K
Power supply mode	Strobe only, constant current driving
Supply voltage	– (V)
Max continuous current	– (mA)
Typical pulse voltage	30 (V)
Max pulse current	10 (A)
Peak power consumption	300.0 (W)
Max duty-cycle	1 (%)
Max pulse duration	1 (ms)
Estimated MTBF	50000 (hours)
Cables	CBLT003 included
Light color, peak wavelength	white, 6500K
Power supply mode	Strobe only, constant current driving
Supply voltage	– (V)
Max continuous current	– (mA)
Typical pulse voltage	28 (V)
Max pulse current	10 (A)
Peak power consumption	280 (W)
Max duty-cycle	2 (%)
Max pulse duration	1 (ms)
Estimated MTBF	50000 (hours)
Cable length	0.3 (m)
Connector	M8
Cables	CBLT003 included
Mount	C
Phase adjustment	Yes
Length	347.0 (mm)
Width	179.0 (mm)
Height	424.1 (mm)
Mass	6981 (g)
Operating temperature	0-40 (°C)
Operating relative humidity	20 – 85, non-condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Exempt

Description

Drop to 50% intensity @ 25°C.
Tolerance ± 2%.
Recommended sensor. Different sensor sizes may generate incomplete images.
Maximum sample diameter in each of the four views and maximum sample height with the recommended sensor.
Working f-number (wf/N): the real f-number of a lens in operating conditions. Lenses with reduced aperture can be supplied on request.
At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
Indicates the availability of an integrated camera phase adjustment feature.

Cable length	0.3 (m)
Width	179.0 (mm)
Optmag	0.093 (x)
Accessory developer	Opto
Maximum	16.0 x 68.0 (mm x mm)
Sensor size	8.5 x 7.1 (mm x mm)
Zoom ratio	0.093 (x)
Working f/N	8
Depth of field	47.90 (mm)
Phase adjustment	Yes
Mass	6981 (g)
Length	347.0 (mm)
Connector	M8
Height	424.1 (mm)
Lens mount	C
Installation	Indoor use only
Operating temperature	0-40 (°C)
Light color, peak wavelength	white, 6500K
Max pulse current	10 (A)
Operating relative humidity	20 – 85, non-condensing (%)
Risk group (cei 62471)	Exempt
Typical pulse voltage	28 (V)
Peak power consumption	280 (W)
Max duty cycle	2 (%)
Max pulse duration	1 (ms)
Cables	CBLT003 included
Power supply mode	Strobe only, constant current driving
Estimated mtbf	50000 (hours)
Min sensor size	2/3"
Mount	C
Supply voltage
