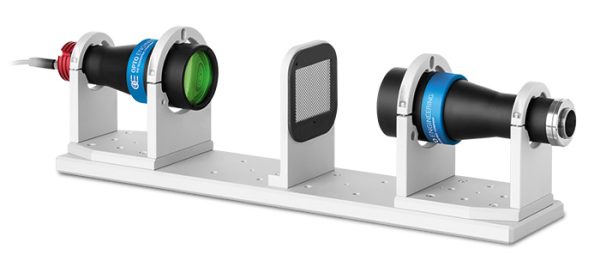

TCBENCH064

Specification	Value
Magnification	0.138 (x)
Image circle diameter	11.0 (mm)
Max sensor size	2/3″
1/3″	34.78 x 26.09 (mm x mm)
1/2.5″	41.30 x 31.01 (mm x mm)
1/2″	46.38 x 34.78 (mm x mm)
1/1.8″	51.67 x 38.62 (mm x mm)
2/3″	61.59 x 51.38 (mm x mm)
Working distance	181.9 (mm)
Working f/N	8
Telecentricity typical (max)	< 0.05 (0.08) (deg)
Distortion typical (max)	< 0.03 (0.07) (%)
Depth of field	21.70 (mm)
Resolution	37 (μm)
Light color, peak wavelength	green, 520 nm
Supply voltage	12-24 (V)
Max power consumption	2.5 (W)
LED voltage	3.3 (4.0) (V)
LED current	350 (mA)
Max pulse current	2000 (mA)
Mount	C
Phase adjustment	No
Length	845 (mm)
Width	143 (mm)
Height	161 (mm)
Mass	8700 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Exempt

Description

Working distance: distance between the front end of the mechanics and the object. Set this distance within ± 3% of the nominal value for maximum resolution and minimum distortion.
Working f-number (wf/N): the real f-number of a lens in operating conditions.
Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
Object side, calculated with the Rayleigh criterion with λ= 520 nm
At max forward current. Tolerance is ± 0.06V on forward voltage measurements.
Used in continuous (not pulsed) mode.
At pulse width <= 10 ms, duty cycle <= 10% condition. Built-in electronics board must be bypassed (see tech info).
Measured from the camera flange of the objective lens to the electronic end of the illuminator. Cable, connector and mount thread excluded.

Lens mount	C
Supply voltage	12-24 (V)
Accessory developer	Opto
Risk group (cei 62471)	Exempt
Zoom ratio	0.138 (x)
Working distance	181.9 (mm)
Working f/N	8
Telecentricity typical (max)	< 0.05 (0.08) (deg)
Distortion typical (max)	< 0.03 (0.07) (%)
Depth of field	21.70 (mm)
Phase adjustment	No
Mass	8700 (g)
Image circle diameter	11.0 (mm)
Resolution	37 (μm)
Length	845 (mm)
Height	161 (mm)
Width	143 (mm)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Installation	Indoor use only
Light color, peak wavelength	green, 520 nm
Max power consumption	2.5 (W)
Led voltage	3.3 (4.0) (V)
Led current	350 (mA)
Max pulse current	2000 (mA)
Operating relative humidity	20-85, non condensing (%)
Optmag	0.138 (x)
