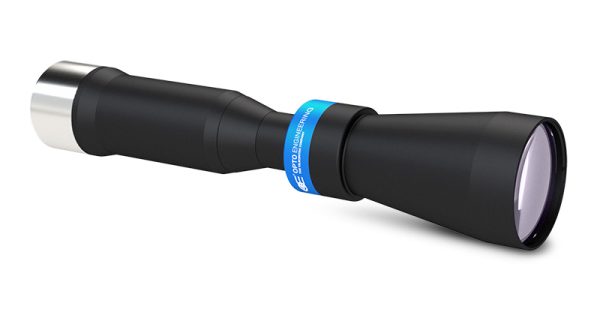

TC16M056-K
Specification |
Value |
Magnification |
0.641 (x) |
Image circle diameter |
43.3 (mm) |
Max sensor size |
35 mm Full Frame |
APS-C IMX342 |
34.88 x 26.16 (mm x mm) |
CHR70M |
48.36 x 34.31 (mm x mm) |
Line 8k-5µm |
63.65 mm |
Full Frame |
56.16 x 37.44 (mm x mm) |
CMV50000 |
56.84 x 43.09 (mm x mm) |
Working distance |
148.6 (mm) |
Working f/N |
16 |
Telecentricity typical (max) |
< 0.04 (0.08) (deg) |
Distortion typical (max) |
< 0.04 (0.10) (%) |
Depth of field |
3.20 (mm) |
Resolution |
16 (μm) |
Mount |
M58x0.75 FD 12.96 |
Phase adjustment |
No |
Length |
372.1 (mm) |
Front diameter |
80 (mm) |
Mass |
1510 (g) |
