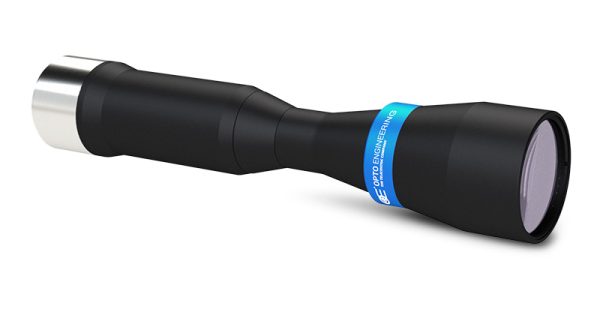

TC16M048-K
Specification |
Value |
Magnification |
0.750 (x) |
Image circle diameter |
43.3 (mm) |
Max sensor size |
35 mm Full Frame |
APS-C IMX342 |
29.81 x 22.36 (mm x mm) |
CHR70M |
41.33 x 29.32 (mm x mm) |
Line 8k-5µm |
54.40 mm |
Full Frame |
48.00 x 32.00 (mm x mm) |
CMV50000 |
48.58 x 36.82 (mm x mm) |
Working distance |
125.6 (mm) |
Working f/N |
16 |
Telecentricity typical (max) |
< 0.06 (0.10) (deg) |
Distortion typical (max) |
< 0.05 (0.10) (%) |
Depth of field |
2.30 (mm) |
Resolution |
14 (μm) |
Mount |
M58x0.75 FD 12.96 |
Phase adjustment |
No |
Length |
348.8 (mm) |
Front diameter |
75 (mm) |
Mass |
1286 (g) |
