Description
- Working distance: distance between the front end of the mechanics and the object.
- Working f-number (wf/N): the real f-number of a lens in operating conditions.
- Measured from the front end of the mechanics to the camera flange.

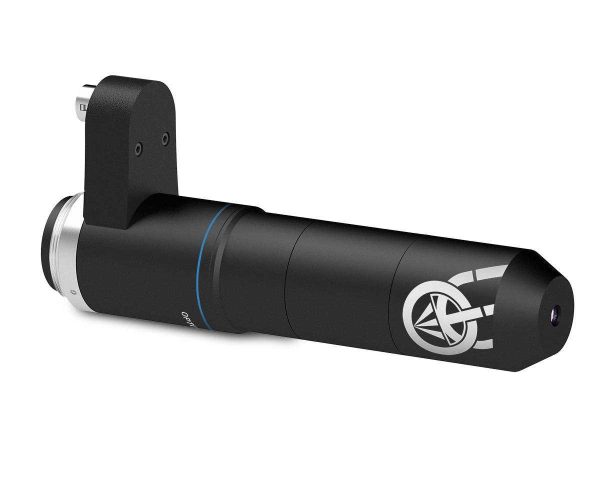

PCHIL023-EL
| Specification | Value |
|---|---|
| Image circle diameter | 6.1 (mm) |
| Min sensor size | 2/3″ |
| Minimum | 10.0 x 6.0 (mm x mm) |
| Maximum | 120.0 x 190.0 (mm x mm) |
| Working distance with minimum object | 5.0 (mm) |
| Working distance with maximum object | 62.0 (mm) |
| Angle of view | 82 (deg) |
| Working f/N | 8 |
| Focusing | Liquid lens |
| Liquid lens model | Optotune EL-3-10 |
| Temperature sensor | Yes |
| Focal power mode | Yes |
| Response time | 1 (ms) |
| Setting time | 4 (ms) |
| Current range | -120 to +120 (mA) |
| Lifecycles (10%-90% sinusoidal) | >1,000,000,000 |
| Connector | HR10A-7R-6PB |
| Mount | C |
| Length | 122.8 (mm) |
| Outer diameter | 30.0 (mm) |
| Mass | 145 (g) |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Installation | Indoor use only |
Additional information
| Lens mount | C |
|---|---|
| Liquid lens model | Optotune EL-3-10 |
| Operation power source | |
| Accessory developer | Opto |
| Angle of view | 82 (deg) |
| Mass | 145 (g) |
| Image circle diameter | 6.1 (mm) |
| Length | 122.8 (mm) |
| Connector | HR10A-7R-6PB |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Installation | Indoor use only |
| Outer diameter | 30.0 (mm) |
| Operating relative humidity | 20-85, non condensing (%) |
| Working f/N | 8 |
| Focal power mode | Yes |
| Temperature sensor | Yes |
| Response time | 1 (ms) |
| Setting time | 4 (ms) |
| Current range | -120 to +120 (mA) |
| Lifecycle (1090% sin) | >1,000,000,000 |
| Focusing | Liquid lens |
| Min sensor size | 2/3" |
| Minimum | 10.0 x 6.0 (mm x mm) |
| Maximum | 120.0 x 190.0 (mm x mm) |
| Wd (min object) | 5.0 (mm) |
| Wd (max object) | 62.0 (mm) |
