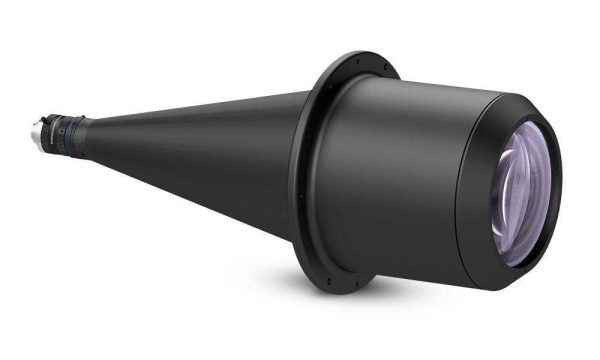

PC13030HP

Specification Value
Image circle diameter 3.6 (mm)
Min sensor size 1/3″
Minimum 20.0 x 13.5 (mm x mm)
Maximum 65.0 x 42.1 (mm x mm)
Working distance with minimum object 76.2 (mm)
Working distance with maximum object 0.0 (mm)
Angle of view 25 (deg)
f/N 1.4 – close
Mount C
Length 455.2 (mm)
Diameter 157.0 (mm)
Mass 6673 (g)
Category: Tag: Brand:

Description

  1. For the complete information about the inspectable field of view, see the datasheet of the objective
  2. The maximum inspectable field of view is given considering zero working distance. While keeping the diameter constant, a working distance greater than zero will decrease the height of the inspectable object accordingly.
  3. Working distance: distance between the front end of the mechanics and the object.
  4. The f-number could be changed using the variable iris.
  5. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C

Mass

6673 (g)

Image circle diameter

3.6 (mm)

Length

455.2 (mm)

F/n

1.4 – close

Min sensor size

1/3"

Minimum

20.0 x 13.5 (mm x mm)

Maximum

65.0 x 42.1 (mm x mm)

Wd (min object)

76.2 (mm)

Wd (max object)

0.0 (mm)

Angle of view

25 (deg)

Diameter

157.0 (mm)

Accessory developer

Opto

Color
