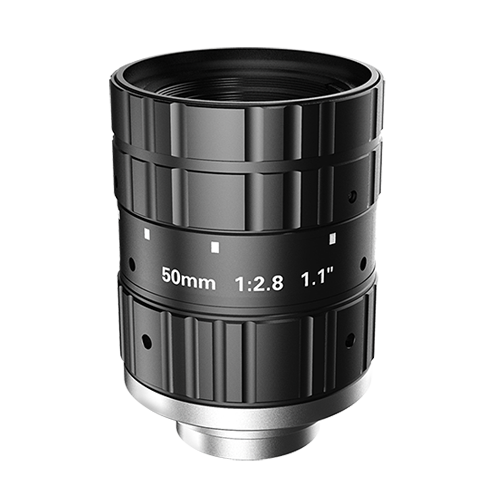

MH5028X
Series |
MH-X Series |
Model |
MH5028X |
Focal Length |
50mm |
Aperture |
F2.8 – F16 |
Image Sensor Size |
Ф17.6mm(1.1″) |
Focus Range |
0.3m to infinite |
Optical Distortion |
-0.05% |
TV Distortion |
-0.01% |
Field of View |
18.4°x14.8°x11.2°((17.6mmx14.08mmx10.56mm)) |
Relative Illumination |
70% (F2.8); 81% (F4.0) |
CRA(Chief Ray Angle) |
7.1° |
Spectral Range |
436nm~656nm |
Spectral Transmission |
T>85% |
Camera Mount |
C Mount |
Filter Thread |
M35.5xP0.5 |
Focus Control |
Manual |
Iris Control |
Manual |
Product Dimensions |
56.82mmxФ38.6mm |
Net Weight |
134 g |
Operating Temperature |
-10°C to +50°C |
