Machine vision in focus
| Series | MH-K Series |

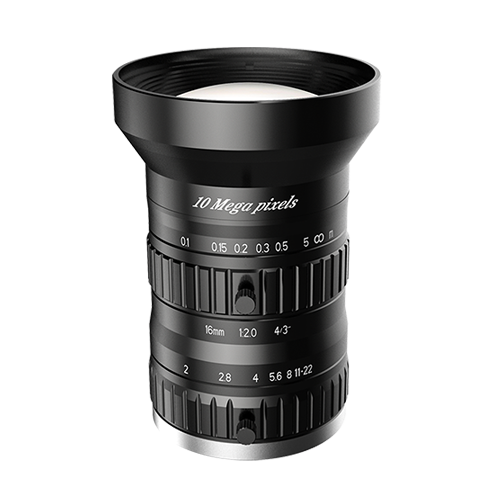

| Model | MH1620K |
| Focal Length | 16mm |
| Aperture | F2.0 – F22 |
| Image Sensor Size | Ф23mm(4/3″) |
| Focus Range | 0.1m to infinite |
| Optical Distortion | -2.81% |
| TV Distortion | -1.27% |
| Field of View | 72.9°x60.9°x47.3° (4/3″) |
| Relative Illumination | 43% (F2.0); 75% (F4.0) |
| CRA（Chief Ray Angle) | 10.5° |
| Spectral Range | 436nm~656nm |
| Spectral Transmission | T>85% |
| Camera Mount | C Mount |
| Filter Thread | M58xP0.5 |
| Focus Control | Manual |
| Iris Control | Manual |
| Product Dimensions | 85.9mm x Ф60mm |
| Net Weight | 338 g |
| Operating Temperature | -20°C to +50°C |
| Field of view | 72.9°x60.9°x47.3° (4/3") |
|---|---|
| Focus control | Manual |
| Cra (chief ray angle) | 10.5° |
