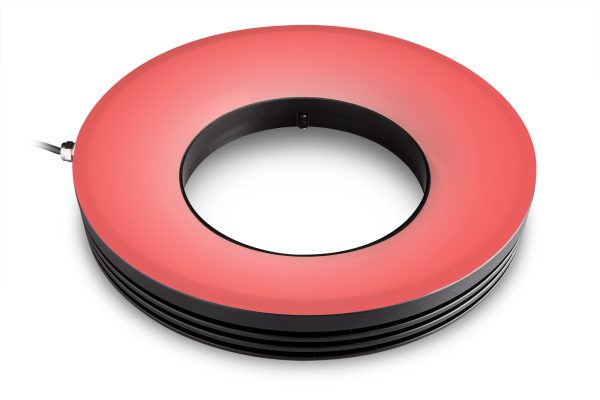

LTRN210R20

Specification	Value
Illumination area outer diameter	195.6 (mm)
Illumination area inner diameter	116.5 (mm)
Emission angle	20 (deg)
Optimal working distance	55-95 (mm)
Number of LED rows	1
Light color, peak wavelength	red, 630 nm
Illuminance at minimum working distance	7110 (lux)
Illuminance at maximum working distance	5980 (lux)
Supply voltage	24 (V)
Current	600 (mA)
Power consumption	14.4 (W)
Estimated MTBF	> 20000 (hours)
Max pulse voltage	24-48 (36 recomended) (V)
Max pulse current	1800 (mA)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Connector	Flying leads
Cable length	1000 (mm)
Outer diameter	210.0 (mm)
Inner diameter	116.0 (mm)
Height	40.0 (mm)
Mass	650 (g)
Operating temperature	0-45 (°C)
Operating relative humidity	20-85, non condensing (%)
Risk group according to CEI EN 62471:2010	Exempt

Description

Cable length	1000 (mm)
Max duty cycle	10 (%)
Light color, peak wavelength	red, 630 nm
Accessory developer	Opto
Lux at max wd	5980 (lux)
Connector	Flying leads
Supply voltage	24 (V)
Height	40.0 (mm)
Operating temperature	0-45 (°C)
Outer diameter	210.0 (mm)
Color	red, 630 nm
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Exempt
Current	600 (mA)
Mass	650 (g)
Power consumption	14.4 (W)
Max pulse duration	10 (ms)
Estimated mtbf	> 20000 (hours)
Illumination area (outer)	195.6 (mm)
Illumination area (inner)	116.5 (mm)
Optimal working distance	55-95 (mm)
Number of led rows	1
Emission angle	20 (deg)
Max pulse voltage	24-48 (36 recomended) (V)
Inner diameter	116.0 (mm)
Lux at min wd	7110 (lux)
Max pulse current	1800 (mA)
Operation power source	600 (mA)
