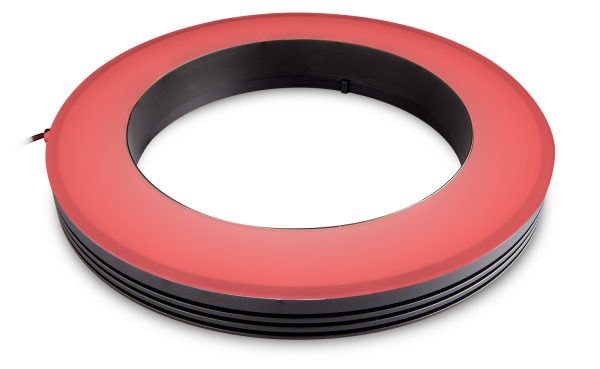

LTRN144RD

LTRN144RD

Specification Value
Illumination area outer diameter 276.0 (mm)
Illumination area inner diameter 226.0 (mm)
Emission angle 0 (deg)
Optimal working distance 280-365 (mm)
Number of LED rows 1
Light color, peak wavelength red, 630 nm
Illuminance at minimum working distance 1120 (lux)
Illuminance at maximum working distance 762 (lux)
Supply voltage 24 (V)
Current 875 (mA)
Power consumption 21.0 (W)
Estimated MTBF > 20000 (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 2650 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector Flying leads
Cable length 1000 (mm)
Outer diameter 290.0 (mm)
Inner diameter 200.0 (mm)
Height 39.6 (mm)
Mass 1310 (g)
Operating temperature 0-35 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Add to Quote
Category: Tag: Brand:

Description

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Additional information

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

red, 630 nm
Accessory developer

Opto
Lux at max wd

762 (lux)
Connector

Flying leads
Supply voltage

24 (V)
Height

39.6 (mm)
Operating temperature

0-35 (°C)
Outer diameter

290.0 (mm)
Color

red, 630 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Current

875 (mA)
Mass

1310 (g)
Power consumption

21.0 (W)
Max pulse duration

10 (ms)
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

276.0 (mm)
Illumination area (inner)

226.0 (mm)
Optimal working distance

280-365 (mm)
Number of led rows

1
Emission angle

0 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

200.0 (mm)
Lux at min wd

1120 (lux)
Max pulse current

2650 (mA)
Operation power source

875 (mA)
