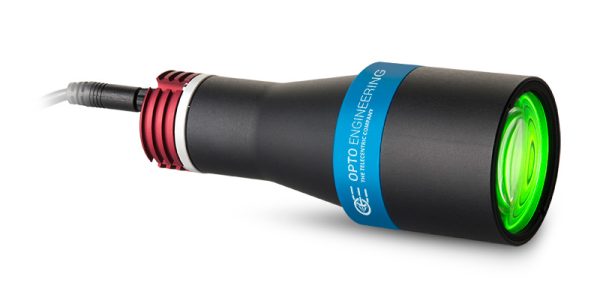

LTCLHP036-G

LTCLHP036-G

Specification Value
Beam diameter 45 (mm)
Working distance range 70 – 140 (mm)
Light color, peak wavelength green, 525 nm
Spectral FWHM 40 (nm)
Supply voltage 12-24 (V)
Max power consumption 2.5 (W)
LED forward voltage typical (max) 3.3 (4.0) (V)
Max LED forward current 350 (mA)
Max pulse current 2000 (mA)
Connector M8
Cables CB244P1500 included
Length 152.1 (mm)
Front diameter 61.0 (mm)
Mass 393 (g)
Operating temperature 0-40 (°C)
Storage temperature 0-50 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Risk group according to CEI EN 62471:2010 Risk group 1
Add to Quote
Category: Tag: Brand:

Description

  1. Opto Engineering® recommends green light for high precision measurement applications
  2. Tolerance ± 10%
  3. At max forward current. Tolerance is ± 0.06V on forward voltage measurements
  4. In continuous mode (non-pulsed)
  5. At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
  6. Nominal value, with no spacers in place

Additional information

Mass

393 (g)
Working distance range

70 – 140 (mm)
Max pulse current

2000 (mA)
Accessory developer

Opto
Max led forward current

350 (mA)
Front diameter

61.0 (mm)
Connector

M8
Supply voltage

12-24 (V)
Operating temperature

0-40 (°C)
Storage temperature

0-50 (°C)
Installation

Indoor use only
Length

152.1 (mm)
Max power consumption

2.5 (W)
Color

green, 525 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Risk group 1
Spectral fwhm

40 (nm)
Cables

CB244P1500 included
Beam diameter

45 (mm)
Led fwd volt (typ/max)

3.3 (4.0) (V)
Light color, peak wavelength

green, 525 nm
