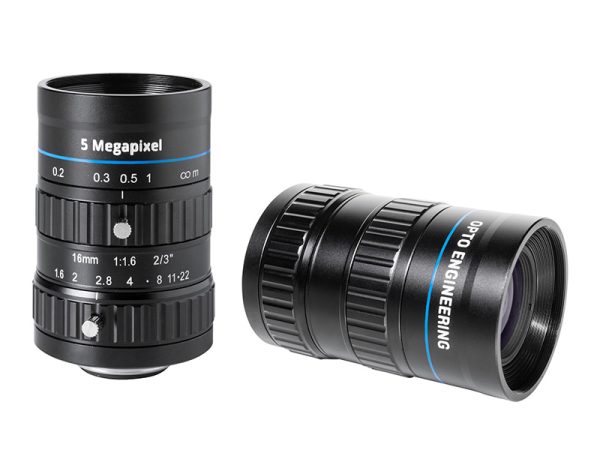

EN5MP1616

EN5MP1616

Specification Value
Focal length 16 (mm)
Magnification 0.076 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 21.3 (deg)
1/2″ 28.1 (deg)
2/3″ 38.0 (deg)
1/3″ 63.41 x 47.56
1/2″ 84.54 x 63.41
2/3″ 112.29 x 93.66
Working distance range 0.2 – inf (m)
f/N 1.6 – 22
Back focal length 12.36 (mm)
Distortion on 1/3″ 0.06 (%)
Distortion on 1/2″ 0.06 (%)
Distortion on 2/3″ 0.07 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M37.5 x 0.5
Outer diameter 43.3 (mm)
Length 63.3 (mm)
Mass 181 (g)
Set screw thread M2
Operating temperature -10-+50 (°C)
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
Operating temperature

-10-+50 (°C)
Optmag

0.076 (x)
Accessory developer

Opto
Zoom ratio

0.076 (x)
Magnification

0.076 (x)
Max sensor size

2/3″
Set screw thread

M2
Mass

181 (g)
Image circle diameter

11.0 (mm)
Length

63.3 (mm)
Focal length

16 (mm)
Back focal length

12.36 (mm)
Working distance range

0.2 – inf (m)
F/n

1.6 – 22
Distortion on 1 3

0.06 (%)
Distortion on 1 2

0.06 (%)
Distortion on 2 3

0.07 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M37.5 x 0.5
Outer diameter

43.3 (mm)
Mount

C
Focal length (mm)

16 (mm)
Sensor size
