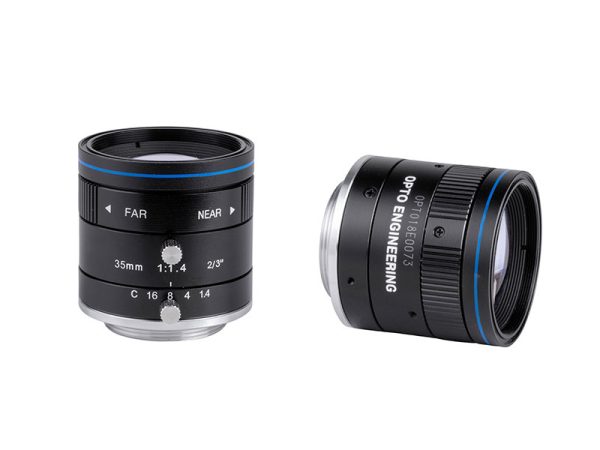

EN2MP3514

EN2MP3514

Specification Value
1/1.8″ 14.7 (deg)
2/3″ 17.7 (deg)
Focal length 35 (mm)
Magnification 0.126 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 9.7 (deg)
1/2″ 12.9 (deg)
1/3″ 38.10 x 28.57
1/2″ 50.79 x 38.10
1/1.8″ 56.51 x 42.30
2/3″ 67.46 x 56.27
Working distance range 0.3 – inf (m)
f/N 1.4 – close
Back focal length 14.7 (mm)
Distortion on 1/3″ 0.09 (%)
Distortion on 1/2″ 0.17 (%)
Distortion on 2/3″ 0.33 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M30.5 x 0.5
Outer diameter 35.4 (mm)
Length 33.8 (mm)
Mass 90 (g)
Set screw thread M1.7
Operating temperature -10-+50 (°C)
Add to Quote
Category: Tag: Brand:

Description

  1. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  2. Measured from the front end of the mechanics to the camera flange at infinity focus.
  3. Calculated at minimum object distance.
  4. Working distance: distance between the front end of the mechanics and the object.

Additional information

Lens mount

C
F/n

1.4 – close
Optmag

0.126 (x)
Accessory developer

Opto
Zoom ratio

0.126 (x)
Magnification

0.126 (x)
Max sensor size

2/3″
Set screw thread

M1.7
1 1 8

56.51 x 42.30 (mm x mm)
Mass

90 (g)
Image circle diameter

11.0 (mm)
Length

33.8 (mm)
Operating temperature

-10-+50 (°C)
Focal length

35 (mm)
Working distance range

0.3 – inf (m)
Back focal length

14.7 (mm)
Distortion on 1 3

0.09 (%)
Distortion on 1 2

0.17 (%)
Distortion on 2 3

0.33 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M30.5 x 0.5
Outer diameter

35.4 (mm)
Mount

C
Focal length (mm)

35 (mm)
Sensor size
